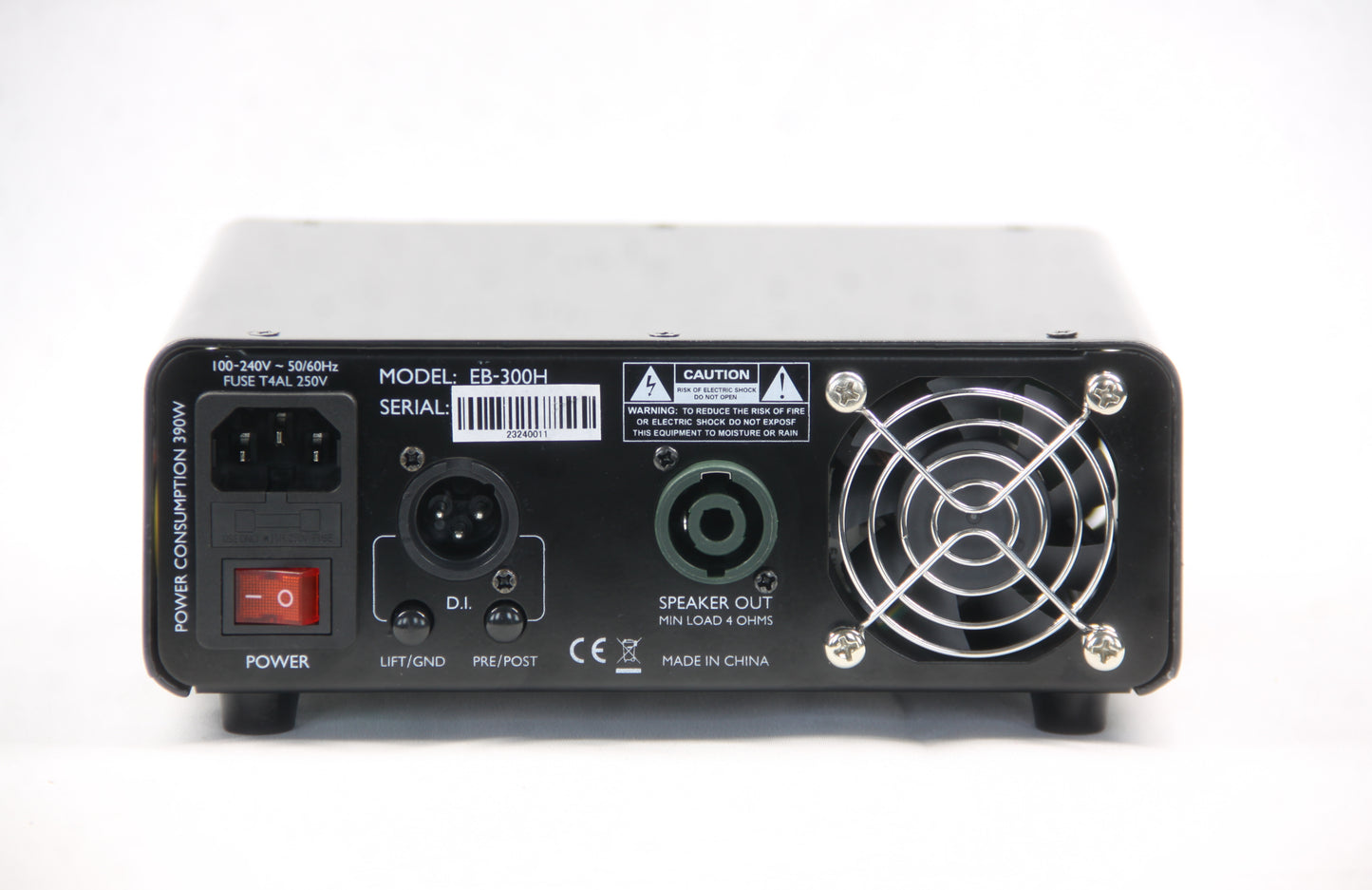

Bass Amp Head

EB-300H

EB-300H

$168.00
$168.00
Sale Sold out
Shipping calculated at checkout.
  • Compact, lightweight design
  • Output power: 300 watt @ 4 Ω
  • ICEpower Class-D power amplifier
  • 5-band equalizer
  • D.I. output with pre / post & lift / ground switch
  • Input sensitivity switchable for active or passive basses
  • Line input with volume control for rehearsing
  • Headphones output



Amp class

Class-D

Input impedance

High

1.5 MΩ

Low

33 kΩ

Line

60 kΩ

Output impedance

D.I.

470 Ω (balanced)

Frequency bands

Bass

50 Hz +/– 10 dB

Lower mids

180 Hz +/– 10 dB

Mids

660 Hz +/– 10 dB

Upper mids

3 kHz +/– 10 dB

Treble

12.5 kHz +/– 10 dB

Output power

Speaker

max. 300 W, 4 Ω min. load

Signal-to-noise ratio

> 80 dB (A-weighted)

Total harmonic distortion

(THD) < 0.5 %

Power consumption

390 W

Operating supply voltage

100 - 240V~ 50/60 Hz

Fuse

5 mm × 20 mm, 4A/250V, slow-blow

Dimensions (W × H × D)

200 mm × 80 mm × 200 mm

Weight

1.55 kg

Ambient conditions

Temperature range

0 °C…40 °C

Relative humidity

50 %, non-condensing
